Catch Basins and Grates

A step up from our traditional box catch basins, the RELN bullet basins are designed with rounded interior surfaces to move water faster and make cleaning easier.

Innovative lock-down feet prevent movement during installation. They simply snap in place to connect with 3 in. and 4 in. corrugated pipe. Or they can be easily glued to 3 in. and 4 in. PVC sewer pipe.

• Single outlet discharge
• Additional grate designs and colors available
• Snap in connection for use with sewer pipe and drain pipe
• Lock-down feet to prevent movement
• Connects to 3 in. and 4 in. sewer and drain pipe
• For residential applications, rated for in-ground use
• Made of durable ABS

Height: 8.38 in
Width: 6.5 in
Depth: 8.5 in
Weight: 1.6 lbs

A step up from our traditional box catch basins, the RELN bullet basins are designed with rounded interior surfaces to move water faster and make cleaning easier.

Innovative lock-down feet prevent movement during installation. They simply snap in place to connect with 3 in. and 4 in. corrugated pipe. Or they can be easily glued to 3 in. and 4 in. PVC sewer pipe.

• Double outlet discharge
• Additional grate designs and colors available
• Snap in connection for use with sewer pipe and drain pipe
• Lock-down feet to prevent movement
• Connects to 3 in. and 4 in. sewer and drain pipe
• For residential applications, rated for in-ground use
• Made of durable ABS

Height: 8.38 in
Width: 6.5 in
Depth: 10.5 in
Weight: 1.9 lbs

RELN 10 in. x 10 in. Catch Basin kit is an ideal solution for capturing and managing medium to high runoff water flow with multiple drain line connection points.

The catch basin features 2 x discharge outlets, 2 x 4in. corrugated pipe connectors with knock-out plugs and a unique leaf basket system that prevents pipe blockage. Super-strong light-weight base and grate made from structurally foamed polypropylene, the ideal catch basin to divert water to safe areas away from the home.

• 2.8 Gal. capacity basin
• Includes 2 x 4 corrugated pipe connectors with knock-out plugs, 1 x black grate and 1 x debris guard
• Safe Live Load (kg, lbs, psi) grate rating: 234kg, 515lbs, 52.2psi
• Light duty grate classed

Height: 10 in
Width: 10 in
Depth: 12 in
Weight: 5 lbs

Product Code: 001118

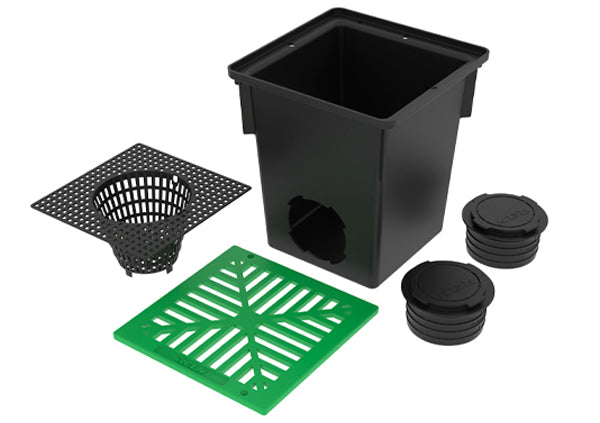

RELN 10 in. x 10 in. Catch Basin kit is an ideal solution for capturing and managing medium to high runoff water flow with multiple drain line connection points.

The catch basin features 2 x discharge outlets, 2 x 4in. corrugated pipe connectors with knock-out plugs and a unique leaf basket system that prevents pipe blockage. Super-strong light-weight base and grate made from structurally foamed polypropylene, the ideal catch basin to divert water to safe areas away from the home.

• 2.8 Gal. capacity basin
• Includes 2 x 4 corrugated pipe connectors with knock-out plugs, 1 x green grate and 1 x debris guard
• Safe Live Load (kg, lbs, psi) grate rating: 234kg, 515lbs, 52.2psi
• Light duty grate classed

Height: 10 in
Width: 10 in
Depth: 12 in
Weight: 5 lbs

RELN 13 in. x 13 in. Catch Basin kit is an ideal solution for capturing and managing medium to high runoff water flow with multiple drain line connection points.

The catch basin features 2 x discharge outlet points with 2 x 4in. corrugated pipe connectors with knock-out plugs. Super-strong light-weight base made from structurally foamed polypropylene, the ideal catch basin to divert water to safe areas away from the home.

• 5.8 Gal. capacity basin
• Includes 2 x 4in. corrugated pipe connectors with knock-out plugs
• For heavy volume applications
• Connects to 3 in. and 4 in. sewer and drain pipe
• Durable black grate included
• For residential applications, rated for in-ground use

Height: 12.4 in
Width: 13.6 in
Depth: 13.6 in
Weight: 6.6 lbs

RELN 13 in. x 13 in. Catch Basin kit is an ideal solution for capturing and managing medium to high runoff water flow with multiple drain line connection points.

The catch basin features 2 x discharge outlets, 2 x 4in. corrugated pipe connectors with knock-out plugs and a unique leaf basket system that prevents pipe blockage. Super-strong light-weight base and grate made from structurally foamed polypropylene, the ideal catch basin to divert water to safe areas away from the home.

• 5.8 Gal. capacity basin
• Includes 2 x 4 corrugated pipe connectors with knock-out plugs, 1 x green grate and 1 x debris guard
• Safe Live Load (kg, lbs, psi) rating: 194kg, 428lbs, 43.4psi
• Light duty grate classed

Height: 13 in
Width: 13.5 in
Depth: 13.5 in
Weight: 6.6 lbs

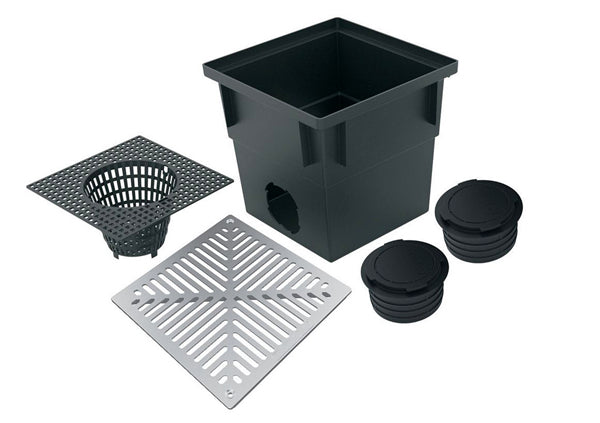

RELN 13 in. x 13 in. Catch Basin kit is an ideal solution for capturing and managing medium to high runoff water flow with multiple drain line connection points.

The catch basin features 2 x discharge outlets, 2 x 4in. corrugated pipe connectors with knock-out plugs and a unique leaf basket system that prevents pipe blockage. Super-strong light-weight base made from structurally foamed polypropylene, durable metal grate. An ideal catch basin to divert water to safe areas away from the home.

• 5.8 Gal. capacity basin
• Includes 2 x 4 corrugated pipe connectors with knock-out plugs, 1 x metal grate and 1 x debris guard
• Safe Live Load (kg, lbs, psi) rating: 194kg, 428lbs, 43.4psi
• Light duty grate classed

Height: 13 in
Width: 13.5 in
Depth: 13.5 in
Weight: 6.75 lbs

RELN 13in. x 13in. x 17in. Super-strong light-weight base made from structurally foamed polypropylene, the RELN Catch Basin with black grate is designed for both commercial and domestic applications.

Ideal for many areas around the property as an efficient solution for capturing and managing high volume runoff water. Template tattooed on the base for various pipe dimensions, allows for easy installation.

• Templates tattooed on base for connection to stormwater pipes
• Dimensions: 14 inch L x 14 inch W x 17 inch H
• Catch Basin Capacity 32L

Height: 18 in
Width: 13.5 in
Depth: 13.5 in
Weight: 8 lbs
