Corrugated Pipes

Corrugated Pipes Product Features

  • Product Features

  • Improve your Yard Drainage

  • Innovative Accessories

Product Features

RELN Corrugated Pipe is a single wall corrugated drainage pipe used for subsoil drainage applications. Manufactured with a corrugated prole from high quality recycled and virgin resins, making the pipe not only strong but also lightweight. Ideal for drainage where flexibility, light weight and low cost are important. The pipe is joined with either an internal coupler or snap coupler and is soil-tight.

Available in 8ft., 40ft., and 100ft. lengths

Perforated w/ Sock Pipe
Sock prevents unwanted sediment entering the pipe causing blockages in the line

Solid Pipe
Perfect for moving stormwater/wastewater when drawing water away from the surrounding soil is not required

Perforated Pipe
Slots allow water to enter the pipe. Perfect to drain away excess groundwater and possibly surfacewater into a stormwater line, wastewater line or pit.

Improve your Yard Drainage

Draining wet yards is not a difficult task, but left unattended it will have considerable impact to the health of your yards growth.

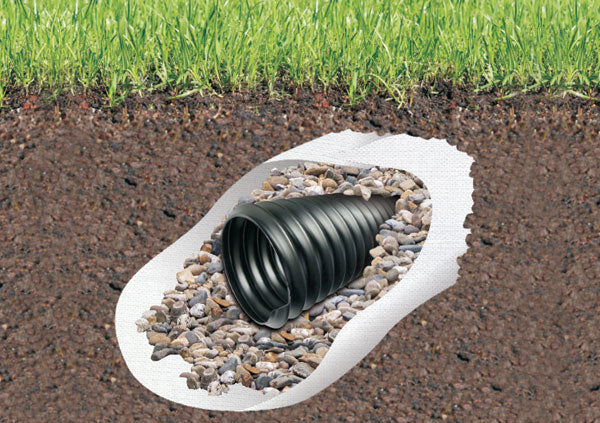

French Drain

French is made by digging a trench around one’s house or property. A porous / perforated pipe, known as the weeping tile (Perforated with Sock is recommended to reduce drain pipe from getting clogged) is then laid down in the trench, which is covered with rough gravel.

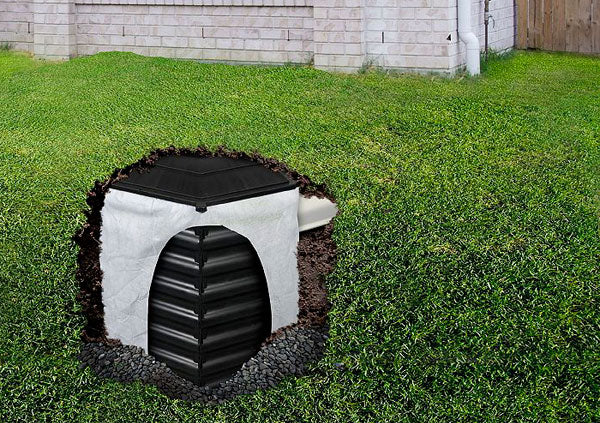

Soak Well also referred to Dry Well

A soak well or dry well is an underground plastic structure that disposes of unwanted water, most commonly surface runoff and stormwater. It is a covered, porous-walled chamber that allows water to slowly soak into the ground (that is, percolate), dissipating into the groundwater. One advantage of a dry well is that you don’t need to worry about clogging, unlike French drain systems.

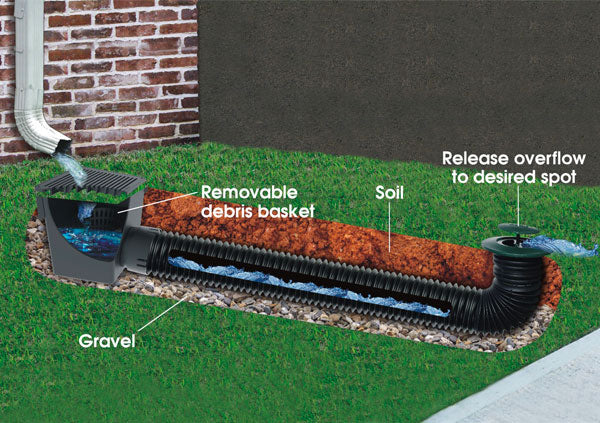

Gutter Solution

A poorly constructed gutter system can result in the water gathering, this can lead to severe foundation issues. Solution, Catch Basin + Corrugated Pipe + Pop-up Emitter = effectively controls high roof run-off water and potions discharge to not erode landscape.

Innovative Accessories

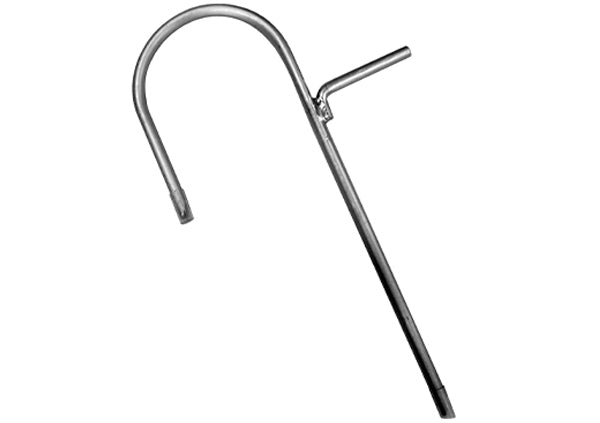

Drainage Peg

RELN drainage peg is simple and effective tool that anchors and holds n place any MOLE-Pipe length of pipe.

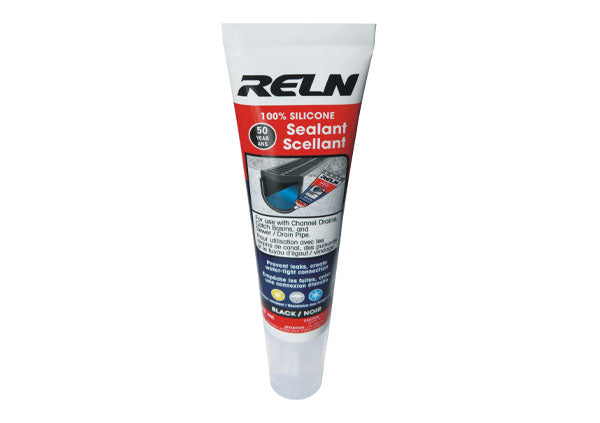

Sealant

RELN Outdoor Drainage sealer has superior adhesion to most construction materials without the need for a primer.

Corrugated Pipes

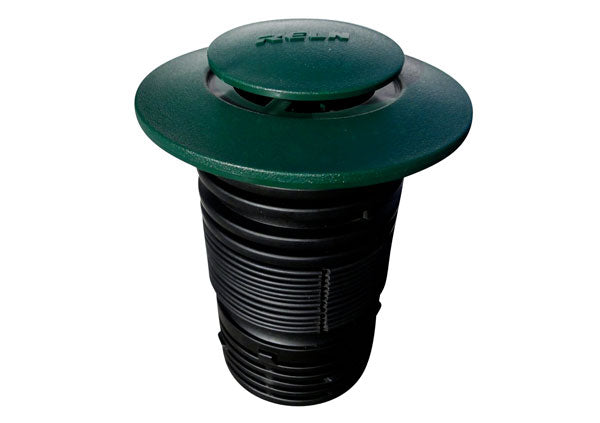

Pop-up Emitter with Flexible Elbow

The RELN pop-up emitter is the perfect solution to divert and disperse excess water to desired areas in your garden or suitable runoff areas.

As the drainage pipes fill and build up slight pressure, the cover rises to allow the excess water to escape. Once the water is discharged the pressure drops and it closes in a flush position.

  • Flexible elbow allows selected angle between 0 and 90 for ease of installation
  • Self-draining slots - no freezing
  • Fits 4" and 3" standard corrugate pipe and PVC pipe
  • Relief emitter blends perfectly in lawn applications

Height: 7.5 in
Width: 6.0 in
Depth: 6.0 in
Weight: 2 lbs

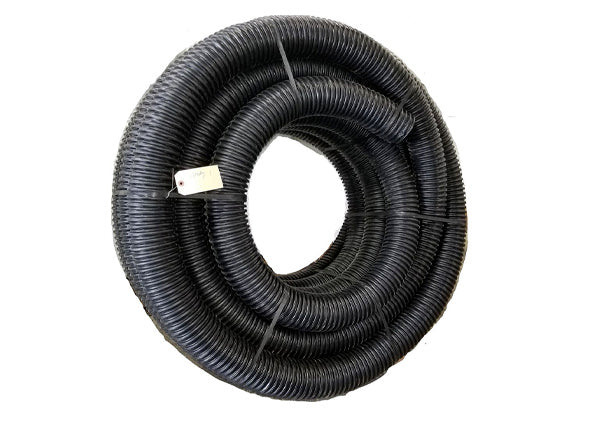

4 in. x 100 ft. Filter Pipe

RELN Corrugated Pipe is a single wall corrugated drainage pipe used for subsoil drainage applications.

Manufactured with a corrugated prole from high quality recycled and virgin resins, making the pipe not only strong but also lightweight. Ideal for drainage where flexibility, light weight and low cost are important. The pipe is joined with either an internal coupler or snap coupler and is soil-tight.


  • Made of high density polyethylene
  • Flexible polyethylene construction installs with ease in uneven terrain
  • Strong construction helps withstand weather and human elements
  • Pipe is wrapped in a filter sock to prevent debris build up in drain pipe

Height: 46 in.
Width: 96.5 in.
Depth: 96.5 in.
Weight: 43.25 lbs.

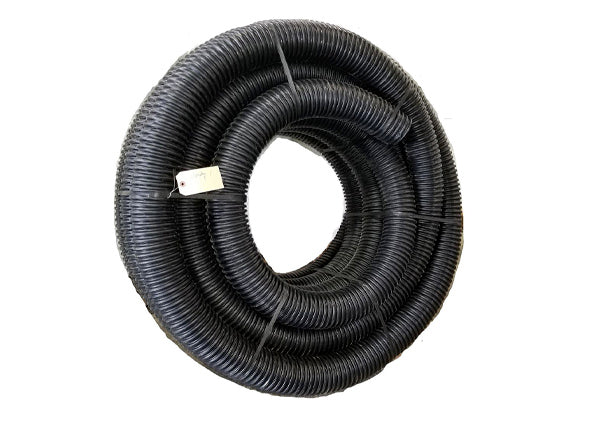

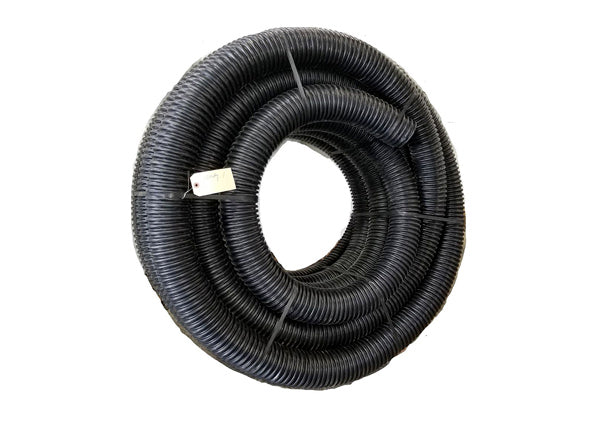

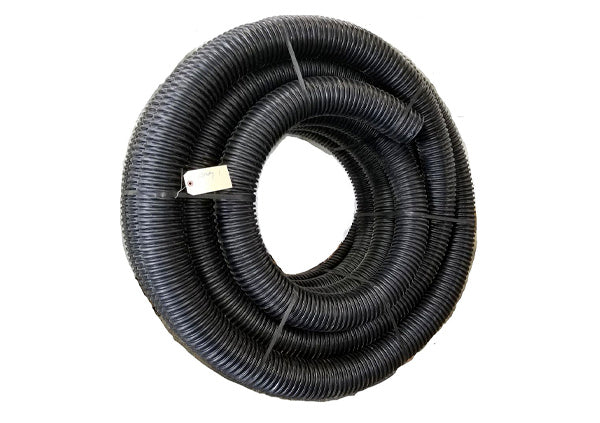

4 in. x 100 ft. Perforated Pipe

RELN Corrugated Pipe is a single wall corrugated drainage pipe used for subsoil drainage applications.

Manufactured with a corrugated prole from high quality recycled and virgin resins, making the pipe not only strong but also lightweight. Ideal for drainage where flexibility, light weight and low cost are important. The pipe is joined with either an internal coupler or snap coupler and is soil-tight.

  • Made of high density polyethylene
  • Flexible polyethylene construction installs with ease in uneven terrain
  • Pipe is perforated to allow water to enter and be transported away

Height: 46 in.
Width: 96.5 in.
Depth: 96.5 in.
Weight: 40.5 lbs

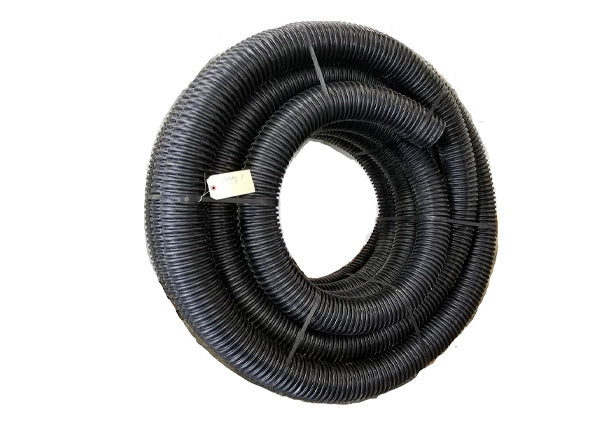

4 in. x 100 ft. Solid Pipe

RELN Corrugated Pipe is a single wall corrugated drainage pipe used for subsoil drainage applications.

Manufactured with a corrugated prole from high quality recycled and virgin resins, making the pipe not only strong but also lightweight. Ideal for drainage where flexibility, light weight and low cost are important. The pipe is joined with either an internal coupler or snap coupler and is soil-tight.

  • Made of high density polyethylene
  • Flexible polyethylene construction installs with ease in uneven terrain
  • Strong construction helps withstand weather and human elements
  • Pipe is solid to move water away from a collection point

Height: 23 in.
Width: 96.5 in.
Depth: 96.5 in.
Weight: 40.5 lbs

4 in. x 40 ft. Perforated w/ Sock Pipe

RELN Corrugated Pipe is a single wall corrugated drainage pipe used for subsoil drainage applications.

Manufactured with a corrugated prole from high quality recycled and virgin resins, making the pipe not only strong but also lightweight. Ideal for drainage where flexibility, light weight and low cost are important. The pipe is joined with either an internal coupler or snap coupler and is soil-tight.

  • Made of high density polyethylene
  • Flexible polyethylene construction installs with ease in uneven terrain
  • Strong construction helps withstand weather and human elements
  • Pipe is wrapped in a filter sock to prevent debris build up in drain pipe

Height: 45 in.
Width: 60 in.
Depth: 60 in.
Weight: 14 lbs

4 in. x 40 ft. Solid Pipe

RELN Corrugated Pipe is a single wall corrugated drainage pipe used for subsoil drainage applications.

Manufactured with a corrugated prole from high quality recycled and virgin resins, making the pipe not only strong but also lightweight. Ideal for drainage where flexibility, light weight and low cost are important. The pipe is joined with either an internal coupler or snap coupler and is soil-tight.

  • Made of high density polyethylene
  • Flexible polyethylene construction installs with ease in uneven terrain
  • Strong construction helps withstand weather and human elements
  • Pipe is solid to move water away from a collection point

Height: 46 in.
Width: 60 in.
Depth: 60 in.
Weight: 14 lbs

4 in. x 8 ft. Perforated Pipe

RELN Corrugated Pipe is a single wall corrugated drainage pipe used for subsoil drainage applications.

Manufactured with a corrugated prole from high quality recycled and virgin resins, making the pipe not only strong but also lightweight. Ideal for drainage where flexibility, light weight and low cost are important. The pipe is joined with either an internal coupler or snap coupler and is soil-tight.

  • Made of high density polyethylene
  • Flexible polyethylene construction installs with ease in uneven terrain
  • Strong construction helps withstand weather and human elements
  • Pipe is perforated to allow water to enter and be transported away

Height: 11.5 in.
Width: 13.12 in.
Depth: 13.12 in.
Weight: 3.571 lbs

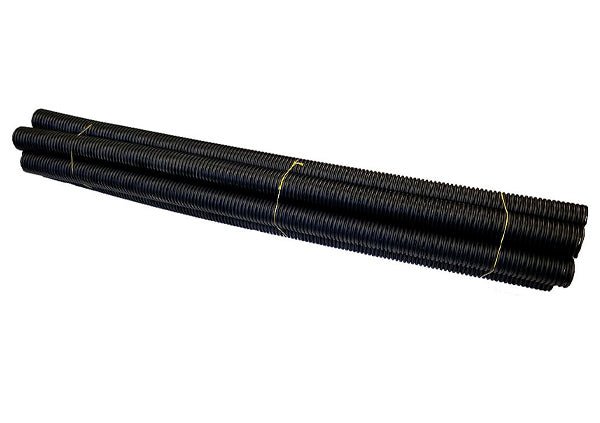

4 in. x 8 ft. Solid Pipe

RELN Corrugated Pipe is a single wall corrugated drainage pipe used for subsoil drainage applications.

Manufactured with a corrugated prole from high quality recycled and virgin resins, making the pipe not only strong but also lightweight. Ideal for drainage where flexibility, light weight and low cost are important. The pipe is joined with either an internal coupler or snap coupler and is soil-tight.

  • Made of high density polyethylene
  • Flexible polyethylene construction installs with ease in uneven terrain
  • Strong construction helps withstand weather and human elements
  • Pipe is solid to move water away from a collection point

Height: 4.5 in.
Width: 13.12 in.
Depth: 13.12 in.
Weight: 2.65 lbs

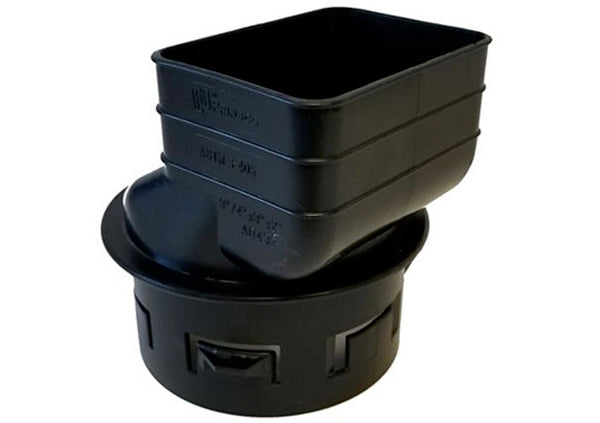

2in. X 3in. X 4in. Downspout Adapter

Fits onto a 2 inch x 3 inch downspout pipe a secure connection with no tools required.

Snap joint fits inside 4 inch round pipe to create a tight fit.

  • Installs quickly, snap-fit pipe connection
  • Survives the impact of rocks in the backfill and the rigors of cold weather handling
  • HDPE is less brittle than PVC and corrosion-resistant

Height: 4 in.
Width: 4 in.
Depth: 4 in.
Weight: 0.217 lbs

4 in. Elbow

Made from durable high density polyethylene, this 4 inch 90° elbow fitting is made to join 4 inch single wall corrugated polyethylene drainage pipe.
  • Installs quickly, snap-fit pipe connection
  • Survives the impact of rocks in the backfill and the rigors of cold weather handling
  • HDPE is less brittle than PVC and corrosion-resistant

Height: 5.1 in.
Width: 5.1 in.
Depth: 5.1 in.
Weight: 0.533 lbs

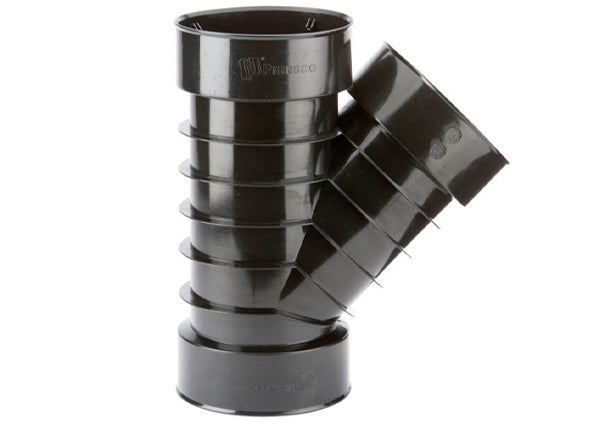

4 in. WYE

The 4 inch Polyethylene Snap Wye Coupling snaps easily onto pipe for fast connections.
  • Installs quickly, snap-fit pipe connection
  • Survives the impact of rocks in the backfill and the rigors of cold weather handling
  • HDPE is less brittle than PVC and corrosion-resistant

Height: 5.1 in.
Width: 5.1 in.
Depth: 5.1 in.
Weight: 0.9 lbs

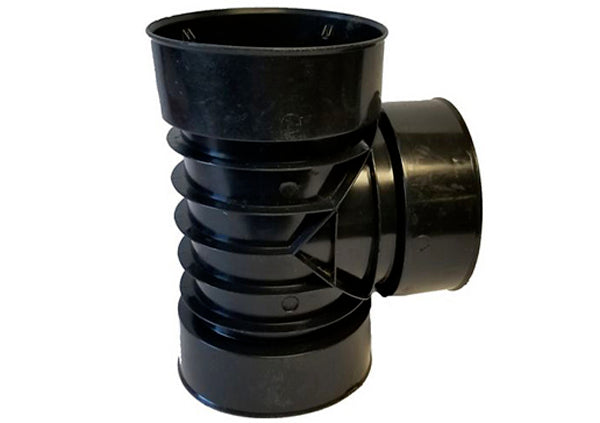

4 in. Tee

The 4 inch TEE snaps on easily for a fast, leak-resistant connection.
  • Installs quickly, snap-fit pipe connection
  • Survives the impact of rocks in the backfill and the rigors of cold weather handling
  • HDPE is less brittle than PVC and corrosion-resistant

Height: 5 in.
Width: 5 in.
Depth: 5 in.
Weight: 0.661 lbs

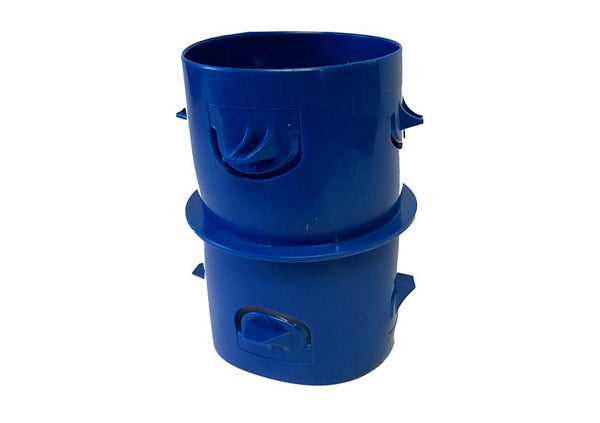

4 in. Insert Coupling

Designed for joining lengths of 4 inch corrugated drainage pipes.
  • Installs quickly, snap-fit pipe connection
  • Survives the impact of rocks in the backfill and the rigors of cold weather handling
  • HDPE is less brittle than PVC and corrosion-resistant

Height: 4.5 in.
Width: 4.5 in.
Depth: 4.5 in.
Weight: 0.427 lbs

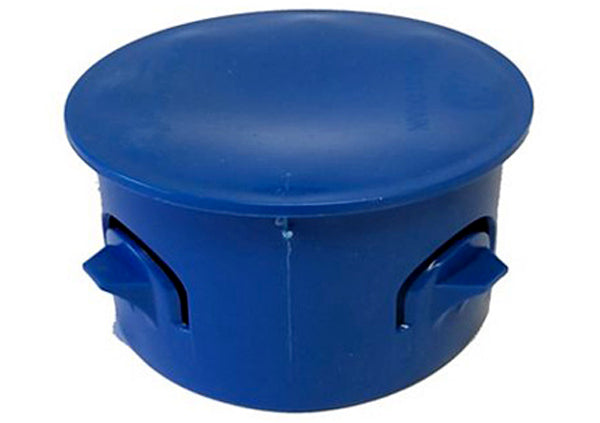

4 in. End Cap

4 inch End Cap is designed to seal off a section of drain pipe.
  • Installs quickly, snap-fit pipe connection.
  • Survives the impact of rocks in the backfill and the rigors of cold weather handling
  • HDPE is less brittle than PVC and corrosion-resistant.

Height: 2.25 in.
Width: 2.25 in.
Depth: 2.25 in.
Weight: 0.1 lbs
