Prevent outdoor flooding and pooling water with the RELN Storm Drain deep profile channel drain.

The deep depth design diverts water efficiently around the home. A complete drainage system with ADA compliant pedestrian safe grates, it is perfect for paths and driveways. Available in 40 in. lengths that are easily connected with a joiner to create longer lengths as desired, or T sections, 4 Way Adaptors and corners to change channel direction.

• Prevents outlet and pipe blockage
• Clips into Bottom Outlet (or either end of Storm Drain Channel into Inline Catch Basin or using End Outlet)
• Durable UV stabilized polypropylene construction

Height: 3.25 in
Width: 3.25 in
Depth: 3.25 in
Weight: 0.10 lb

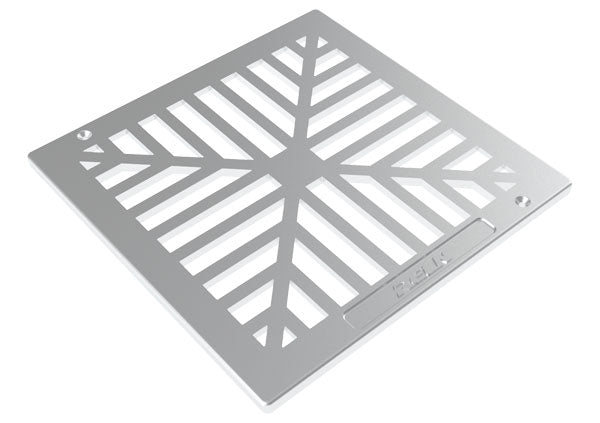

RELN 9 in. x 9 in. flat square aluminum grate is designed to fit the RELN 9 in. x 9 in. Catch Basins. They are suitable for both landscape and hardscape applications and able to withstand normal abuse in landscaping applications. The RELN grate is lightweight and helps prevent clogged pipes.

• Fits RELN 9 in. x 9 in. traditional catch basin (part number 001119)
• Snap-in grate design, no screws required
• Flat surface for lawn and pedestrian areas
• Designed to direct water into catch basin
• Tough and durable lightweight plastic
• For residential applications, rated for in-ground use

Height: 0.5 in
Width: 10.0 in
Depth: 10.0 in
Weight: 1.5 lbs

RELN Slim Inline Drainage Pit is designed to work with the Storm Drain Channel system as an underground catch basin.

The unit includes 4 x knock-out discharge outlet options that accommodates 4 in. PVC pipe. Discharge pipe can be glued to the basin by using transition glue (ABS to PVC). The depth of the Slim Inline pit provides flexibility for interlock stone applications and prefect for high vehicle traffic areas allowing discharge pipe at a safe depth.

• ADA compliant grate
• Storm drain inline pit is designed for fast easy connection to RELN storm drain channels
• ABS construction with multiple discharge outlets, that glue to 4 in. sewer pipe
• 316-stainless steel marine grade
• U shaped channel profile that aids in self-cleaning
• Lock-down feet
• Supports domestic passenger vehicles (with appropriate installation in concrete)
• Dimensions: 13.125 in. L x 10.25 in. H x 4.75 in. W
• Designed for RELN storm drain channel series

Height: 10.125 in
Width: 4.75 in
Depth: 13.5 in
Weight: 1.2 lbs

RELN shower drains are made of premium 304 stainless steel, to ensure it is as corrosive and rust resistant with a long-life span. The low-profile drain is slopped to achieve the best fit, and function in a tile or stone installation. RELN drains includes a high-quality threaded adaptor with rubber O-ring that also helps in adjusting the height of the drain; the adaptor is compatible with most 2 in. PVC, ABS, and Cast-Iron Flanges.

Other Bonuses - A lifting hook is included to remove the grate from the drain; a hair and debris lift-out strainer is also included to capture unwanted object to avoid clogging the pipe.

• Stainless steel finish
• 304 grade stainless steel construction
• Drain size 2 in.
• Low-profile drain
• Debris basket to prevent drain clog
• Includes lifting key for ease of grate removal and maintenance
• Suggested uses shower drains, patio/atrium drains, and other wetted area floor drains
• Compatible with all tile and stone flooring materials
• Drain base sold separately

RELN shower drains are made of premium 304 stainless steel, to ensure it is as corrosive and rust resistant with a long-life span. Each drain length is slopped to achieve the best fit, and function in a tile or stone installation. RELN drains provide a great solution for curb less shower entry, with no obstacles. Equipped with 2 adjustable feet on both ends of the linear drain during installation, an installer can precisely adjust the height of the two ends to level with the ground, before pouring concrete to the shower base; avoid buying linear drain without adjustable feet or you may run into a tilted installation. Comes with a high-quality threaded adaptor with rubber O-ring that also helps in adjusting the height of the drain; the adaptor is compatible with most 2 in. PVC, ABS, and Cast-Iron Flanges. Other Bonuses - A lifting hook is included to remove the grate from the drain; a hair and debris lift-out strainer is also included to capture unwanted object to avoid clogging the pipe.

• 304 grade stainless steel construction has a sloped channel to ensure proper drainage
• Stainless steel drain with tile-insert drain cover Ideal shower drain for large format tiles
• Adjustable leveling feet for quick and easy height adjustment during installation
• Includes lifting key for ease of drain cover removal during cleaning and maintenance
• Debris basket included to prevent drain pipe clog
• One-point drainage slope application
• Drain base sold separately
• Low profile drain system
• Enhance the look of your shower

Length: 24.02 in
Width: 3.23 in
Depth: 1.06 in

Prevent outdoor flooding and pooling water with the RELN Storm Drain deep profile channel drain.

The deep depth design diverts water efficiently around the home. A complete drainage system with ADA compliant pedestrian safe grates, it is perfect for paths and driveways.

• Ideal for paths, driveways and domestic areas with corners and T sections
• Designed to withstand 5 tonne vehicle weight
• Tough, durable, lightweight
• Deep "U" shaped channel profile, aids in self cleaning
• Durable UV stabilized polypropylene construction

Anti-flotation feet stop channel from moving or floating during the concrete pour and beds the channel directly on the prepared trench base
Channel can be cut with jigsaw or hacksaw
