RELN Storm Master is designed for domestic or commercial applications where heavy surfacewater flows or heavy pedestrian traffic is a factor. The channel is self-cleaning and able to withstand 10 tonnes of vehicle weight when installed correctly.

• Connects to Storm Master Channel
• Ideal for collection of high surfacewater flows in large domestic & light commercial applications
• Designed to withstand 10 tonne vehicle weight
• Lock-in clips reduce channel movement

Height: 10.4 in
Width: 12.2 in
Depth: 12.2 in
Weight: 10.8 lbs

The deep depth design diverts water efficiently around the home. A complete drainage system with ADA compliant pedestrian safe grates, it is perfect for paths and driveways. Available in 40 in. lengths that are easily connected with a joiner to create longer lengths as desired, or T sections, 4 Way Adaptors and corners to change channel direction.

• Slim design catch basin for channel drain
• Fits RELN Storm Drain Channel
• Glues to 4-in PVC pipe
• Deep profile with 4 outlet point options
• Clip in and out design - easy to install

Height: 10.28 in
Width: 4.76 in
Depth: 13.38 in
Weight: 2.09 lbs

Prevent outdoor flooding and pooling water with the RELN Storm Drain deep profile channel drain.

The deep depth design diverts water efficiently around the home. A complete drainage system with ADA compliant pedestrian safe grates, it is perfect for paths and driveways. Available in 40 in. lengths that are easily connected with a joiner to create longer lengths as desired, or T sections, 4 Way Adaptors and corners to change channel direction.

• Fits Storm Drain channel and Inline Catch Basin
• Install on end of channel to block water flow
• Clip in and out design - no screws required
• Durable UV stabilized polypropylene construction

Height: 4.72 in
Width: 5.08 in
Weight: 0.1 lbs

The RELN 6 inch Square Green Grate is injection-molded from structural foam polypropylene for high durability.

Ultraviolet inhibitors are added to prevent fading and cracking from exposure to sunlight. Grate is designed to connect into the RELN Bullet Catch Basins (part 000210 & 000211) and onto 6" PVC Sch. 20 pipe.

• Snap-fit into RELN bullet basins (part number 000210 and 000211)
• Use in large lawn areas, large landscape areas and patios
• Drains and directs excess water

Height: 2.0 in
Width: 5.9 in
Depth: 5.9 in
Weight: 0.4 lbs

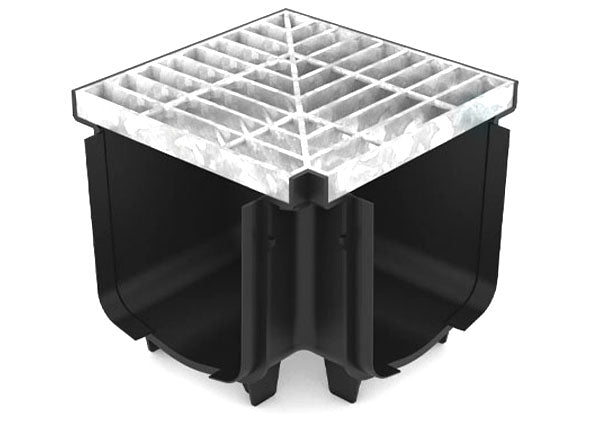

Storm Master surface water drainage system is the perfect solution for collection of high surface water flows, in large domestic and light commercial applications

• Class B Galvanised Steel Grate with lockdown security
• Large profile channel with specially shaped self cleaning channel base to clear high flows of stormwater
• 10 ton load capacity

Eliminate outdoor water runoff and pooling issues with the RELN Storm Drain channel drainage system.

It is easy to install and allows maximum flexibility in solving your drainage requirements around the home or light commercial applications. Typical uses include driveways, pools and walkways wherever excess water and erosion are a problem. The systems design allows maximum flexibility in length of channels, corners and intersections. You can connect Storm Drain Channel to 4 in. sewer pipe with bottom or end outlet connection. Duct tile iron grates have a load rating of class C = 5000 kg and can support forklift traffic.

• Channel lengths are interlocking, no clips required
• Recommended to support 5000 kg heavy duty load rating
• Manufactured from 100% recycled plastic (polypropylene)
• Anti-floatation channel feet prevent floating when encased in fill material
• U shaped channel, corners and tees are designed to prevent water pooling
• Cross braced ribs are designed into the body for strength and rigidity
• End outlet accommodates 4 in. sewer pipe or 4 in. corrugated pipe and/or schedule 40 pipe with adaptor
• Grates clip in and out, no screws required
• Class rating load = class C
• Designed to support forklift wheel base traffic2

Height: 5 in
Width: 4.75 in
Depth: 40 in
Weight: 12 lbs

The RELN pop-up emitter is the perfect solution to divert and disperse excess water to desired areas in your garden or suitable runoff areas.

As the drainage pipes fill and build up slight pressure, the cover rises to allow the excess water to escape. Once the water is discharged the pressure drops and it closes in a flush position.

• Flexible elbow allows selected angle between 0 and 90 for ease of installation
• Self-draining slots - no freezing
• Fits 4" and 3" standard corrugate pipe and PVC pipe
• Relief emitter blends perfectly in lawn applications

Height: 7.5 in
Width: 6.0 in
Depth: 6.0 in
Weight: 2 lbs

RELN shower drains are made of premium 304 stainless steel, to ensure it is as corrosive and rust resistant with a long-life span. Each drain length is slopped to achieve the best fit, and function in a tile or stone installation. RELN drains provide a great solution for curb less shower entry, with no obstacles. Equipped with 2 adjustable feet on both ends of the linear drain during installation, an installer can precisely adjust the height of the two ends to level with the ground, before pouring concrete to the shower base; avoid buying linear drain without adjustable feet or you may run into a tilted installation. Comes with a high-quality threaded adaptor with rubber O-ring that also helps in adjusting the height of the drain; the adaptor is compatible with most 2 in. PVC, ABS, and Cast-Iron Flanges. Other Bonuses - A lifting hook is included to remove the grate from the drain; a hair and debris lift-out strainer is also included to capture unwanted object to avoid clogging the pipe.

• 304 grade stainless steel construction has a sloped channel to ensure proper drainage
• Matte black drain and grate finish
• Ideal shower drain for large format tiles
• Adjustable leveling feet for quick and easy height adjustment during installation
• Includes lifting key for ease of drain cover removal during cleaning and maintenance
• Debris basket included to prevent drain pipe clog
• One-point drainage slope application
• Drain base sold separately Low profile drain system
• Enhance the look of your shower

Length: 27.95 in
Width: 3.23 in
Depth: 1.06 in
