RELN 13 in. x 13 in. Catch Basin kit is an ideal solution for capturing and managing medium to high runoff water flow with multiple drain line connection points.

The catch basin features 2 x discharge outlets, 2 x 4in. corrugated pipe connectors with knock-out plugs and a unique leaf basket system that prevents pipe blockage. Super-strong light-weight base and grate made from structurally foamed polypropylene, the ideal catch basin to divert water to safe areas away from the home.

• 5.8 Gal. capacity basin
• Includes 2 x 4 corrugated pipe connectors with knock-out plugs, 1 x black grate and 1 x debris guard
• Safe Live Load (kg, lbs, psi) rating: 194kg, 428lbs, 43.4psi
• Light duty grate classed

Height: 13 in
Width: 13.5 in
Depth: 13.5 in
Weight: 6.6 lbs

The RELN Soakwell is an easy to install and sustainable solution to control storm water runoff.

Used independently or as part of a larger storm water management system, Soakwell units collects, retains and filters storm water naturally through subsurface, reducing pollutants and helping to replenish ground water tables by discharging storm water on site.

• Clears unwanted water in sandy soil fast, designed to withstand ground pressure, knock out centre or bottom inlet / outlet for controlled flow
• Drainage slots designed to provide maximum water flow to surrounding soil
• Kit Includes: 1 x Base Unit, 1 x Lid with inlet & 1 x Filter Sock stops sand from entering Soak Well
• Dimensions: 24" x 11" x 24"
• Capacity: 150L

Height: 12 in
Width: 27 in
Depth: 25 in
Weight: 9.95 lbs

RELN 13in. x 13in. x 17in. Super-strong light-weight base made from structurally foamed polypropylene, the RELN Catch Basin with black grate is designed for both commercial and domestic applications.

Ideal for many areas around the property as an efficient solution for capturing and managing high volume runoff water. Template tattooed on the base for various pipe dimensions, allows for easy installation.

• Templates tattooed on base for connection to stormwater pipes
• Dimensions: 14 inch L x 14 inch W x 17 inch H
• Catch Basin Capacity 32L

Height: 18 in
Width: 13.5 in
Depth: 13.5 in
Weight: 8 lbs

The RELN 6 inch Square Green Grate is injection-molded from structural foam polypropylene for high durability.

Ultraviolet inhibitors are added to prevent fading and cracking from exposure to sunlight. Grate is designed to connect into the RELN Bullet Catch Basins (part 000210 & 000211) and onto 6" PVC Sch. 20 pipe.

• Snap-fit into RELN bullet basins (part number 000210 and 000211)
• Use in large lawn areas, large landscape areas and patios
• Drains and directs excess water

Height: 2.0 in
Width: 5.9 in
Depth: 5.9 in
Weight: 0.4 lbs

The RELN 4 in. Sch. 40 Pipe Adapter is designed to adapt 4 in. Schedule 40 pipe to the RELN Storm Drain channel drains and Vortex catch basin. Made of ABS material, it can glue to the Storm Drain End Outlet and the Vortex Pit bottom outlet. Adapts schedule 40 pipe to sewer pipe.

• Glues into a storm drain end outlet (part number 003408) and vortex basin bottom outlet (part numbers 000077 and 000250)
• Glues into 4 in. RELN outlet and glues to 4 in. schedule 40 pipe
• Easy to assemble and install
• Tough and durable lightweight ABS plastic
• 1-piece injection molded
• For residential applications, rated for in-ground use

Weight: 0.45 lbs

RELN Outdoor Drainage sealer has superior adhesion to most construction materials without the need for a primer. It cures to form a flexible, watertight bond to almost any substrate.

It provides a watertight seal for channel drain, pipe and catch basin connection joints. Bonds PVC to ABS pipe as well, a ideal for sealing the Storm Drain End Caps to the channel drain end to create a watertight connection.

• Lightly sand area where silicone will be applied to create a stronger adhesion
• Bonds to: Galvanized steel Aluminium Steel Vinyl Most plastics Masonry, stone, & concrete Ceramics PVC
• Water resistant before, during, and after cure
• 50 year durability
• 100% Silicone, Low odour

Height: 7 in
Width: 2 in
Depth: 1 in
Weight: 1.5 lbs

Storm Master surface water drainage system is the perfect solution for collection of high surface water flows, in large domestic and light commercial applications

• Class B Galvanised Steel Grate with lockdown security
• Large profile channel with specially shaped self cleaning channel base to clear high flows of stormwater
• 10 ton load capacity

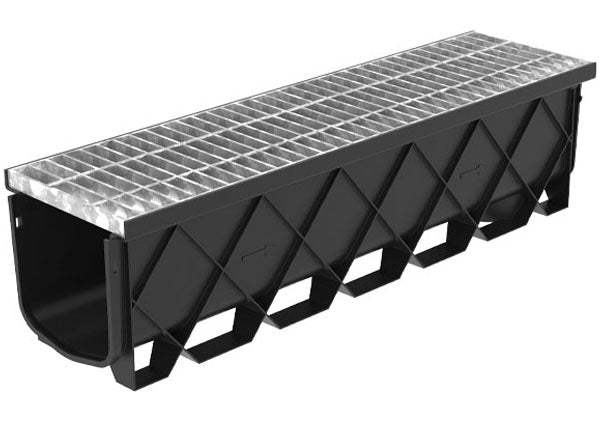

The heavy-duty Storm Master Pro series drainage system is ideal for the collection of substantial flows of surface water in large domestic and light commercial areas.

With wider, deeper channels, a high-intake, galvanized steel lockdown/anti­ tamper grate and a self-cleaning channel base, Storm Master g gets the job done efficiently. Made from durable, lightweight, recycled plastic, this top-of-the­ line system is also easy to install and connects to a wide range of components.

• Class B galvanized steel grate with lockdown security
• Clip in joints assembly for ease of installation
• Bottom knock-out outlet, designed for 6 in. PVC pipe
• 10 ton vehicle loading with appropriate concrete installation
• Dimensions: 40 in. L x 10.75 in. W x 10.375 in. H
• Large profile channel with specially shaped self-cleaning channel base to clear high flows of storm water
• Strong, durable and lightweight UV stabilized poly propylene channel

Height: 10.4 in
Width: 10.8 in
Depth: 39.4 in
Weight: 31.7 lbs
