Prevent outdoor flooding and pooling water with the RELN Storm Drain deep profile channel drain.

The deep depth design diverts water efficiently around the home. A complete drainage system with ADA compliant pedestrian safe grates, it is perfect for paths and driveways. Available in 40 in. lengths that are easily connected with a joiner to create longer lengths as desired, or T sections, 4 Way Adaptors and corners to change channel direction.

• Fits Storm Drain channel and Inline Catch Basin
• Install on end of channel to block water flow
• Clip in and out design - no screws required
• Durable UV stabilized polypropylene construction

Height: 4.72 in
Width: 5.08 in
Weight: 0.1 lbs

Eliminate outdoor water runoff and pooling issues with the RELN Storm Drain channel drainage system.

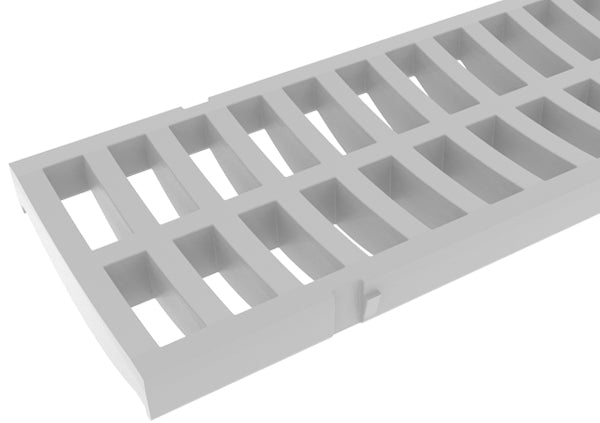

It is easy to install and allows maximum flexibility in solving your drainage requirements around the home or light commercial applications. Typical uses include driveways, pools and walkways wherever excess water and erosion are a problem. The systems design allows maximum flexibility in length of channels, corners and intersections. You can connect Storm Drain Channel to 4 in. sewer pipe with bottom or end outlet connection. The tough durable and lightweight UV stabilized plastic channel includes concave Portland Grey grate to suit domestic pedestrian and vehicle traffic.

• Channel lengths are interlocking, no clips required
• Recommended for medium duty pneumatic tire traffic, autos and light trucks at speeds less than 20-mph
• Manufactured from 100% recycled plastic (polypropylene)
• Anti-floatation channel feet prevent floating when encased in fill material
• U shaped channel, corners and tees are designed to prevent water pooling
• Cross braced ribs are designed into the body for strength and rigidity
• End outlet accommodates 4 in. sewer pipe or 4 in. corrugated pipe and/or Sch. 40 pipe with adaptor
• Grates clip in and out, no screws required
• Kit includes 3 in. x 40 in. channels, 1 x end cap and 1 x end outlet

Height: 5.08 in
Width: 4.75 in
Depth: 10 ft
Weight: 17 lb

It can also clip to the outside of the male end of the channel depending on the application, providing a secure connection. The adapter allows left or right hand extension of the Storm Drain system or even T and X configurations. The required openings can easily be cut out.

• Allows left or right hand extension also tee and cross configurations
• Supports domestic passenger vehicles (with appropriate installation in concrete)
• Cross braced ribs are designed in the body for strength and rigidity
• Concave plastic grey grate
• Anti-floatation feet to prevent floating when encased in fill material
• Interlocking channel system - no need for couplings

Height: 4.75 in
Width: 4.75 in
Depth: 4.75 in
Weight: 0.90 lbs

RELN 13 in. x 13 in. Catch Basin kit is an ideal solution for capturing and managing medium to high runoff water flow with multiple drain line connection points.

The catch basin features 2 x discharge outlets, 2 x 4in. corrugated pipe connectors with knock-out plugs and a unique leaf basket system that prevents pipe blockage. Super-strong light-weight base and grate made from structurally foamed polypropylene, the ideal catch basin to divert water to safe areas away from the home.

• 5.8 Gal. capacity basin
• Includes 2 x 4 corrugated pipe connectors with knock-out plugs, 1 x black grate and 1 x debris guard
• Safe Live Load (kg, lbs, psi) rating: 194kg, 428lbs, 43.4psi
• Light duty grate classed

Height: 13 in
Width: 13.5 in
Depth: 13.5 in
Weight: 6.6 lbs

The RELN Soakwell is an easy to install and sustainable solution to control storm water runoff.

Used independently or as part of a larger storm water management system, Soakwell units collects, retains and filters storm water naturally through subsurface, reducing pollutants and helping to replenish ground water tables by discharging storm water on site.

• Clears unwanted water in sandy soil fast, designed to withstand ground pressure, knock out centre or bottom inlet / outlet for controlled flow
• Drainage slots designed to provide maximum water flow to surrounding soil
• Kit Includes: 1 x Base Unit, 1 x Lid with inlet & 1 x Filter Sock stops sand from entering Soak Well
• Dimensions: 24" x 11" x 24"
• Capacity: 150L

Height: 12 in
Width: 27 in
Depth: 25 in
Weight: 9.95 lbs

RELN 13in. x 13in. x 17in. Super-strong light-weight base made from structurally foamed polypropylene, the RELN Catch Basin with black grate is designed for both commercial and domestic applications.

Ideal for many areas around the property as an efficient solution for capturing and managing high volume runoff water. Template tattooed on the base for various pipe dimensions, allows for easy installation.

• Templates tattooed on base for connection to stormwater pipes
• Dimensions: 14 inch L x 14 inch W x 17 inch H
• Catch Basin Capacity 32L

Height: 18 in
Width: 13.5 in
Depth: 13.5 in
Weight: 8 lbs

The RELN 6 inch Square Green Grate is injection-molded from structural foam polypropylene for high durability.

Ultraviolet inhibitors are added to prevent fading and cracking from exposure to sunlight. Grate is designed to connect into the RELN Bullet Catch Basins (part 000210 & 000211) and onto 6" PVC Sch. 20 pipe.

• Snap-fit into RELN bullet basins (part number 000210 and 000211)
• Use in large lawn areas, large landscape areas and patios
• Drains and directs excess water

Height: 2.0 in
Width: 5.9 in
Depth: 5.9 in
Weight: 0.4 lbs
