RELN shower drains are made of premium 304 stainless steel, to ensure it is as corrosive and rust resistant with a long-life span. The low-profile drain is slopped to achieve the best fit, and function in a tile or stone installation. RELN drains includes a high-quality threaded adaptor with rubber O-ring that also helps in adjusting the height of the drain; the adaptor is compatible with most 2 in. PVC, ABS, and Cast-Iron Flanges. Other Bonuses - A lifting hook is included to remove the grate from the drain; a hair and debris lift-out strainer is also included to capture unwanted object to avoid clogging the pipe.

• Matte black finish
• 304 grade stainless steel construction
• Drain size 2 in.
• Low-profile drain
• Debris basket to prevent drain clog
• Includes lifting key for ease of grate removal and maintenance
• Suggested uses shower drains, patio/atrium drains, and other wetted area floor drains
• Compatible with all tile and stone flooring materials
• Drain base sold separately

Length: 4 in
Width: 4 in

 RELN shower drains are made of premium 304 stainless steel, to ensure it is as corrosive and rust resistant with a long-life span. The low-profile drain is slopped to achieve the best fit, and function in a tile or stone installation. RELN drains includes a high-quality threaded adaptor with rubber O-ring that also helps in adjusting the height of the drain; the adaptor is compatible with most 2 in. PVC, ABS, and Cast-Iron Flanges.

Other Bonuses - A lifting hook is included to remove the grate from the drain; a hair and debris lift-out strainer is also included to capture unwanted object to avoid clogging the pipe.

• Stainless steel finish
• 304 grade stainless steel construction
• Drain size 2 in.
• Low-profile drain
• Debris basket to prevent drain clog
• Includes lifting key for ease of grate removal and maintenance
• Suggested uses shower drains, patio/atrium drains, and other wetted area floor drains
• Compatible with all tile and stone flooring materials
• Drain base sold separately"

Length: 4 in.
Width: 4 in.

RELN shower drains are made of premium 304 stainless steel, to ensure it is as corrosive and rust resistant with a long-life span. Each drain length is slopped to achieve the best fit, and function in a tile or stone installation. RELN drains provide a great solution for curb less shower entry, with no obstacles. Equipped with 2 adjustable feet on both ends of the linear drain during installation, an installer can precisely adjust the height of the two ends to level with the ground, before pouring concrete to the shower base; avoid buying linear drain without adjustable feet or you may run into a tilted installation. Comes with a high-quality threaded adaptor with rubber O-ring that also helps in adjusting the height of the drain; the adaptor is compatible with most 2 in. PVC, ABS, and Cast-Iron Flanges.

Other Bonuses - A lifting hook is included to remove the grate from the drain; a hair and debris lift-out strainer is also included to capture unwanted object to avoid clogging the pipe.

• 304 grade stainless steel construction has a sloped channel to ensure proper drainage
• Stainless steel drain and grate finish
• Ideal showers drain for large format tiles
• Adjustable leveling feet for quick and easy height adjustment during installation
• Includes lifting key for ease of drain cover removal during cleaning and maintenance
• Debris basket included to prevent drainpipe clog
• 1-point drainage slope application
• Drain base sold separately
• Low profile drain system
• Enhance the look of your shower

Length: 24.02 in
Width: 3.23 in
Depth: 1.06 in

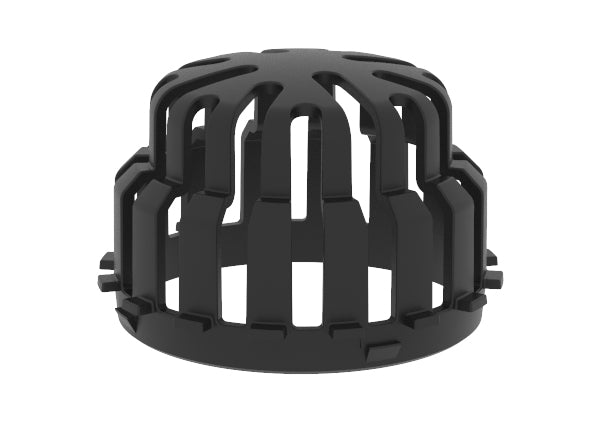

The Rain Mate Channel Drain system with its low profile design and pedestrian safe heel guard grates provides optimal outdoor drainage solutions for preventing pooling and flooding water.

• Prevents Outlet and pipe blockage
• Clips into bottom outlet or either end of channel, or into Inline Catch Basin using an End Outlet

Height: 3.15"
Width: 3.54"
Weight: 0.44lbs

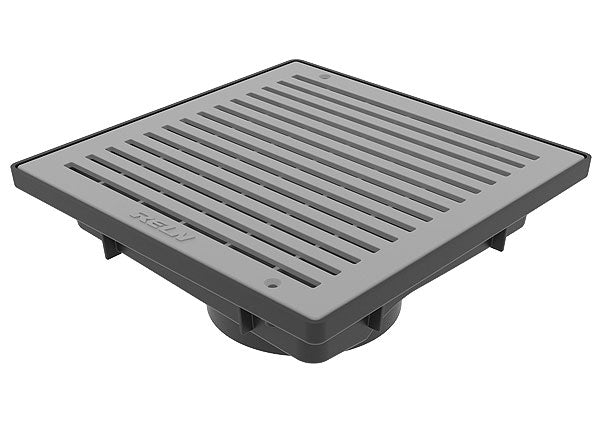

The quickest, easiest catch basin to install. The Vortex literally acts like 1, producing vortex action that moves water even faster than any basin to effectively prevent pooling water and mosquito breeding grounds. A built-in debris collector and anti-tamper feature is incorporated into the design. you can adapt onto drainage pipe.

• Flat grey grate design is perfect for pedestrian areas
• Vortex action prevents standing water - no breeding area for mosquitoes
• 4 in. bottom outlet allows easy connection
• Glues to 4 in. sewer pipe
• Easily connect 4 in. drain pipe by using the RELN 4 in. corrugated pipe adapter (Part 000225)
• Stainless steel screws included
• Light duty grate classed
• Safe Live Load rating (kg, lbs, psi): 168kg, 371lbs, 37.6psi

Height: 3.10 in
Width: 9.0 in
Depth: 9.0 in
Weight: 1.3 lbs

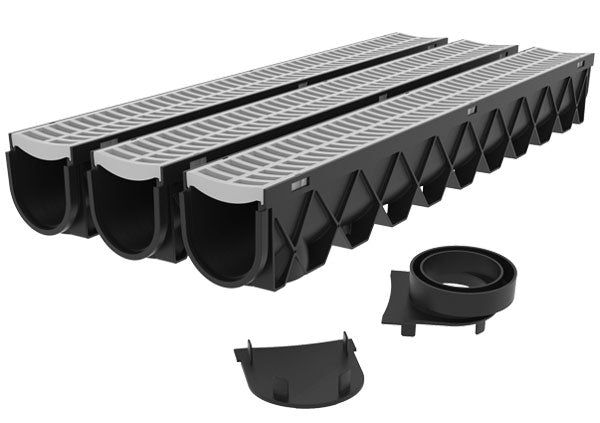

Eliminate outdoor water runoff and pooling issues with the RELN Storm Drain channel drainage system.

It is easy to install and allows maximum flexibility in solving your drainage requirements around the home or light commercial applications. Typical uses include driveways, pools and walkways wherever excess water and erosion are a problem. The systems design allows maximum flexibility in length of channels, corners and intersections. You can connect Storm Drain Channel to 4 in. sewer pipe with bottom or end outlet connection. The tough durable and lightweight UV stabilized plastic channel includes concave Portland Grey grate to suit domestic pedestrian and vehicle traffic.

• Channel lengths are interlocking, no clips required
• Recommended for medium duty pneumatic tire traffic, autos and light trucks at speeds less than 20-mph
• Manufactured from 100% recycled plastic (polypropylene)
• Anti-floatation channel feet prevent floating when encased in fill material
• U shaped channel, corners and tees are designed to prevent water pooling
• Cross braced ribs are designed into the body for strength and rigidity
• End outlet accommodates 4 in. sewer pipe or 4 in. corrugated pipe and/or Sch. 40 pipe with adaptor
• Grates clip in and out, no screws required
• Kit includes 3 in. x 40 in. channels, 1 x end cap and 1 x end outlet

Height: 5.08 in
Width: 4.75 in
Depth: 10 ft
Weight: 17 lb

Connects 6 in. SCH 40 pipe to RELN Storm Master Outlets
Durable and lightweight ABS construction
Snap in fit and glued connection

Height: 6.69 in.
Width: 6 in.
Depth: 7.08
Weight: 1.04 lbs



RELN 13 in. x 13 in. Catch Basin kit is an ideal solution for capturing and managing medium to high runoff water flow with multiple drain line connection points.

The catch basin features 2 x discharge outlets, 2 x 4in. corrugated pipe connectors with knock-out plugs and a unique leaf basket system that prevents pipe blockage. Super-strong light-weight base and grate made from structurally foamed polypropylene, the ideal catch basin to divert water to safe areas away from the home.

• 5.8 Gal. capacity basin
• Includes 2 x 4 corrugated pipe connectors with knock-out plugs, 1 x black grate and 1 x debris guard
• Safe Live Load (kg, lbs, psi) rating: 194kg, 428lbs, 43.4psi
• Light duty grate classed

Height: 13 in
Width: 13.5 in
Depth: 13.5 in
Weight: 6.6 lbs
