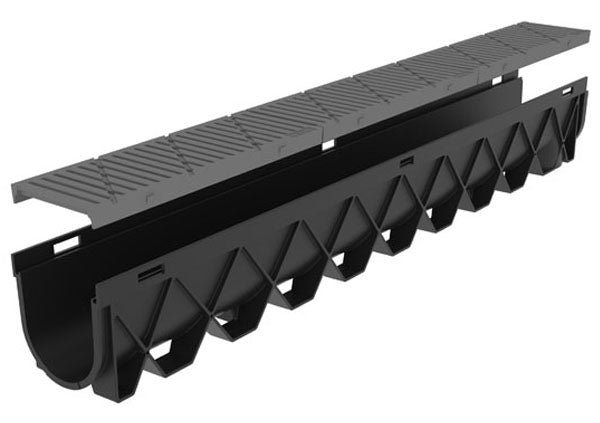

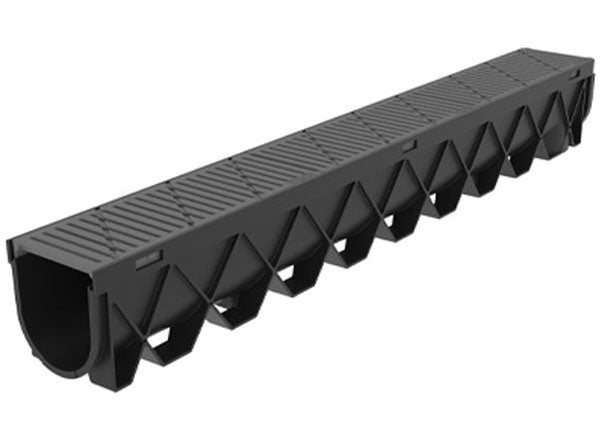

Storm Drain 40 in. Ductile Iron Black Grate

Eliminate outdoor water runoff and pooling issues with the RELN Storm Drain channel drainage system.

It is easy to install and allows maximum flexibility in solving your drainage requirements around the home or light commercial applications. Typical uses include driveways, pools and walkways wherever excess water and erosion are a problem. The systems design allows maximum flexibility in length of channels, corners and intersections. You can connect Storm Drain Channel to 4 in. sewer pipe with bottom or end outlet connection. Duct tile iron grates have a load rating of class C = 5000 kg and can support forklift traffic.

  • Channel lengths are interlocking, no clips required
  • Recommended to support 5000 kg heavy duty load rating
  • Manufactured from 100% recycled plastic (polypropylene)
  • Anti-floatation channel feet prevent floating when encased in fill material
  • U shaped channel, corners and tees are designed to prevent water pooling
  • Cross braced ribs are designed into the body for strength and rigidity
  • End outlet accommodates 4 in. sewer pipe or 4 in. corrugated pipe and/or schedule 40 pipe with adaptor
  • Grates clip in and out, no screws required
  • Class rating load = class C
  • Designed to support forklift wheel base traffic2

Height: 5 in
Width: 4.75 in
Depth: 40 in
Weight: 12 lbs
