Channel Drains

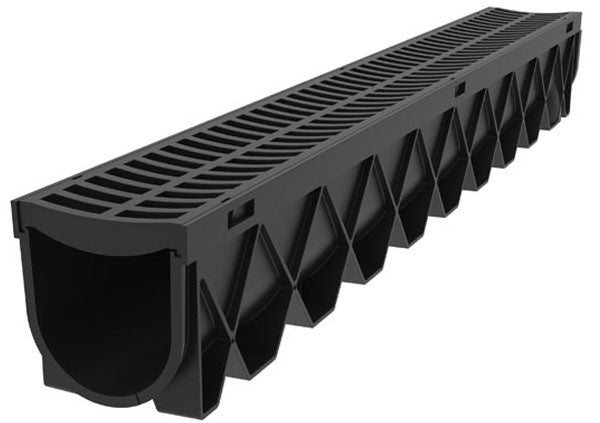

Storm Drain 40 in. Black
Eliminating outdoor runoff water which can cause flooding and pooling around a property is quick and easy with the RELN storm drain channel system. Storm drain channels are available in 40 in. and 10 ft. lengths, with interlocking sections that snap-in together to create the desired length that suits your project. The systems design allows maximum flexibility with, corners and intersections. The U shaped channels aid in self-cleaning with a deep profile. You can connect storm drain to 4 in. sewer pipe with the end outlet, slimline pit and to prevent leaves or other debris clogging pipes or waterways with the leaf guard. The tough durable and lightweight UV stabilized plastic channel includes Portland grey concave grate to suit domestic pedestrian and vehicle traffic.

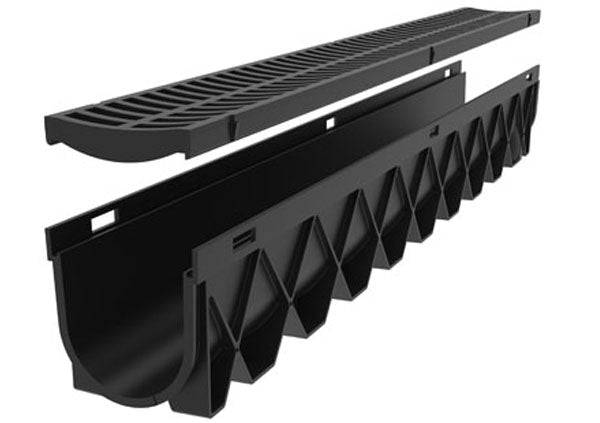

- Interlocking channel system - no need for coupling
- Deep "U" shaped channel profile, aids in self cleaning
- Supports domestic passenger vehicles (with appropriate installation in concrete)
- Channels can be cut with jigsaw or hacksaw
- Bottom outlet discharge or for end outlet discharge, use storm drain part number 003408 to connect to 4-in sewer pipe
- Anti-flotation feet to prevent floating when encased in fill material
Height: 5 in
Width: 4.75 in
Depth: 39.75 in
Weight: 4.11 lbs
